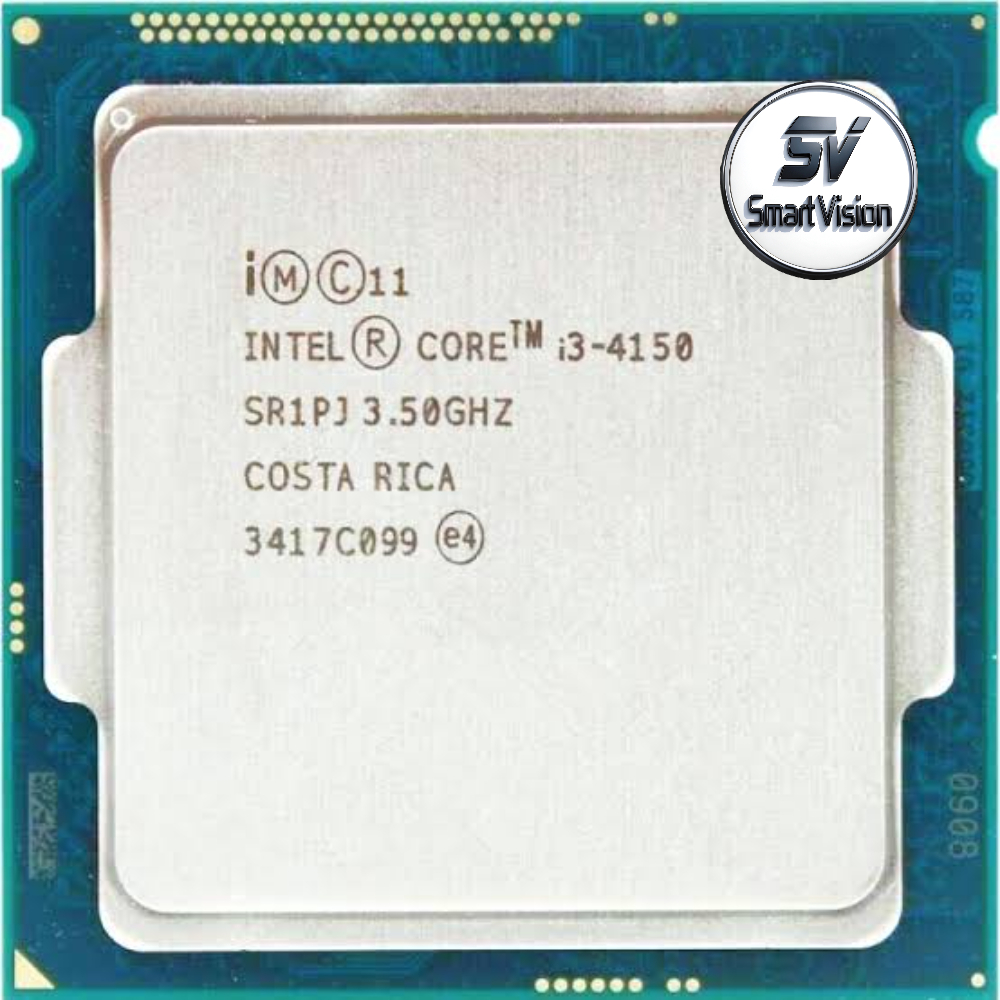

Intel® Core™ i3-4150 Processor 3M Cache, 3.50 GHz

Essentials

Product Collection

4th Generation Intel® Core™ i3 Processors

Code Name

Products formerly Haswell

Vertical Segment

Desktop

Processor Number

i3-4150

Lithography

22 nm

CPU Specifications

Total Cores

2

Total Threads

4

Processor Base Frequency

3.50 GHz

Cache

3 MB Intel® Smart Cache

Bus Speed

5 GT/s

TDP

54 W

Supplemental Information

Marketing Status

Discontinued

Launch Date

Q2’14

Expected Discontinuance

07/14/2017

Servicing Status

End of Servicing Lifetime

End of Servicing Updates Date

Wednesday, June 30, 2021

Embedded Options Available

No

Datasheet

View now

Memory Specifications

Max Memory Size (dependent on memory type)

32 GB

Memory Types

DDR3-1333/1600, DDR3L-1333/1600 @ 1.5V

Max # of Memory Channels

2

Max Memory Bandwidth

25.6 GB/s

ECC Memory Supported ‡

Yes

GPU Specifications

GPU Name‡

Intel® HD Graphics 4400

Graphics Base Frequency

350 MHz

Graphics Max Dynamic Frequency

1.15 GHz

Graphics Video Max Memory

2 GB

Graphics Output

eDP/DP/HDMI/DVI/VGA

Max Resolution (HDMI)‡

4096×2304@24Hz

Max Resolution (DP)‡

3840×2160@60Hz

Max Resolution (eDP – Integrated Flat Panel)‡

3840×2160@60Hz

Max Resolution (VGA)‡

1920×1200@60Hz

DirectX* Support

11.1/12

OpenGL* Support

4.3

Intel® Quick Sync Video

Yes

Intel® InTru™ 3D Technology

Yes

Intel® Clear Video HD Technology

Yes

# of Displays Supported ‡

3

Device ID

0x41E

Expansion Options

Scalability

1S Only

PCI Express Revision

Up to 3.0

PCI Express Configurations ‡

Up to 1×16, 2×8, 1×8+2×4

Max # of PCI Express Lanes

16

Package Specifications

Sockets Supported

FCLGA1150

Max CPU Configuration

1

Thermal Solution Specification

PCG 2013C

TCASE

72°C

Package Size

37.5mm x 37.5mm

Advanced Technologies

Intel® Turbo Boost Technology ‡

No

Intel® Hyper-Threading Technology ‡

Yes

Intel® Transactional Synchronization Extensions

No

Intel® 64 ‡

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Security & Reliability

Intel® AES New Instructions

Yes

Intel® Trusted Execution Technology ‡

No

Execute Disable Bit ‡

Yes

Intel® Stable IT Platform Program (SIPP)

No

Intel® Virtualization Technol

ogy (VT-x) ‡

Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡

No

Intel® VT-x with Extended Page Tables (EPT) ‡

Yes
