HIS RX 570 4G IceQ X2 OC

Model Name

HIS RX 570 IceQ X² OC 4GB

Chipset

TM Radeon RX 570 GPU

Cooler

IceQ X²Cooler with 11pcs fan-blades of each Fan

Memory Size/Type

4GB GDDR5

Engine Clock

Base Clock: 1168MHz, Boost Clock: 1244MHz, OC Clock: 1264MHz

Memory Clock

7Gbps

Memory Interface

256 bit

Bus Interface

PCI Express 3.0 x 16

Maximum Resolution (per Display)

HDMI 2.0 b-4096 x 2160 pixel resolution @60 Hz Dual-link DVI-D Port—2560 x 1600 pixel resolution @ 60 Hz

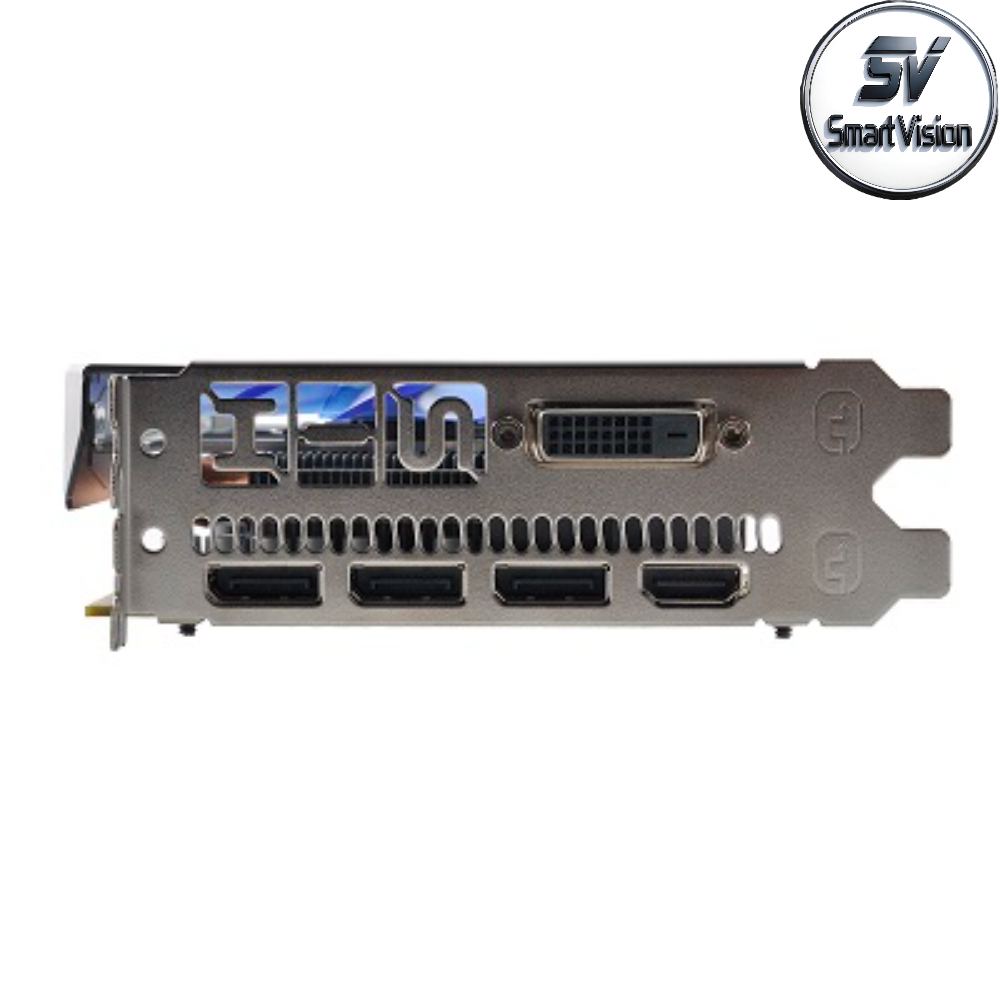

Output Ports

3pcs DisplayPort, 1pcs HDMI & 1pcs DL-DVI-D

HDMI

DisplayPort 1.4-5120 x 2880 pixel resolution @ 60Hz

System Requirements

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 450W or greater Power Supply with 1x 8-pin PCI Express Power Connector.

Minimum 4GB of system memory. Recommended 8GB.

Installation software requires a keyboard, a mouse and a display.

DVD playback requires DVD drive and a DVD.

A display with digital input (HDMI™ or DisplayPort) is required.

Blu-ray™ playback requires Blu-ray drive & a Blu-ray disc.

Supported operating systems include Linux®, Windows® 10 and Windows® 7.

64-bit operating system required.
